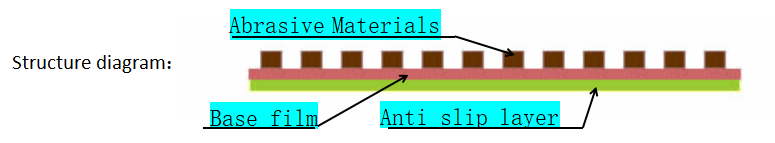

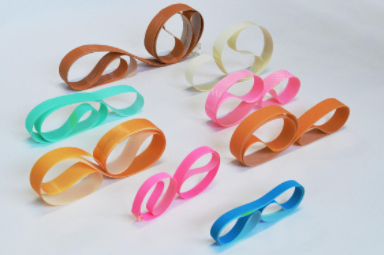

The three-dimensional structure polishing belt introduced by our company adopts the development of intaglio printing technology and micro structure replication technology in the world. It is made by coating precision abrasive on pet and other base materials. It is widely used in precision polishing and cleaning of liquid crystal panel, semiconductor and alloy.
Main Specification
|
Pyramid Abrasive
|
Abrasive Material
|
Aluminum hydroxide, calcium carbonate, alumina
|
Grit
|
3000#,4000#,6000#,8000#,10000#,12000#
|
Product size
|
Customizations are available upon requests
|
Features:
1、Cutting groove provides good chip removal ability;
2、The concave convex grinding block has self sharpening property, which provides the product with long service life;
3、High flatness of grinding surface helps to reduce or avoid scratches on the panel;
4、High cutting force and cleaning efficiency.
Application:
1、It can be used for cleaning the front panel and ITO of common panel and wiring panel polarizers;
2、Polish the mobile phone shell.
|
|
Grinding of LCD and ITO
|

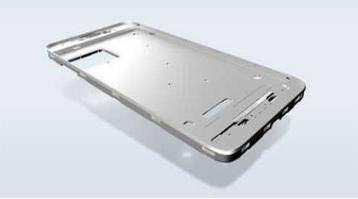

Mobile phone shell grinding
|
