The diamond grinding paste produced by our company is a kind of soft abrasive tool made of diamond micro powder abrasive and paste binder, which can also be called loose abrasive tool. It is used to grind hard and brittle materials for high surface finish. Grinding is characterized by the continuous rolling of abrasive in the process of grinding, resulting in two functions of extrusion and cutting, so that the convex and concave surfaces gradually become flat and smooth. The bond of grinding paste is oil-soluble and water-soluble. For example, in PCB circuit board industry, in the process of metallography, sample grinding plus grinding paste (0.3um) of a certain fineness, so that the cross-section of the sample inlaid for observation can be more clearly reached the test standard under the microscope.

Content:

Diamond grinding paste is divided into water-soluble grinding paste and oil-soluble grinding paste.

Oil soluble grinding paste has good wettability, small grinding force and heat. It is mainly used for processing parts of high hard alloy materials such as hard alloy with high finish, instruments, measuring tools, cutting tools, Die and mould polishing, etc. Water soluble abrasive paste has low viscosity, easy to be chipped and high processing efficiency. It is mainly used for processing slightly corrosive metals, circuit boards, glass, ceramics, gemstones, agates and other non-metallic hard and brittle materials.

Diamond grinding paste adopts imported high-grade large-sized diamond crystal as raw material, uses the most advanced powder preparation technology to separate the diamond micro powder (nanometer and micron) with very narrow particle size distribution, and strictly controls the crystal shape control system of nanometer and micron single-crystal diamond, so that the approximate circle value of each particle is almost perfect, and successfully participates in the grinding and polishing process to higher quality reproducibility. Diamond is evenly distributed in paste carrier, with self-lubricating function, suitable for manual polishing, suitable for low hardness samples. It can quickly polish the metallographic sample material with irregular surface (groove, etc.) and is easy to use.

Specification: W0.25 W0.5 W1.5 W2.5 W3.5 W5 W7 W10 W14 W20 W28 W40

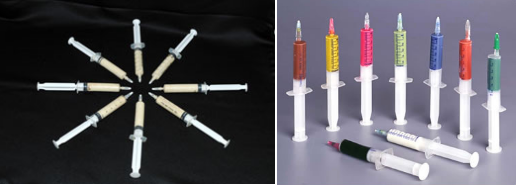

Packing: 5g / piece ,10g / piece, 50g / piece (Customized according to customer requirements)

Applications：

1. Grinding and polishing of tungsten steel mold, optical mold, injection mold, etc;

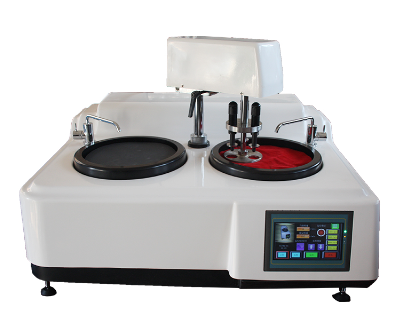

2. Grinding and polishing during metallographic analysis experiment;

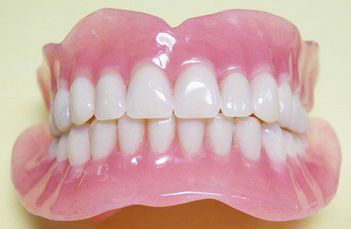

3. Grinding and polishing of dental materials (dentures);

4. Grinding and polishing of jewelry and jade crafts;

5. Grinding and polishing of optical lens, hard glass and crystal, super hard ceramic and alloy.

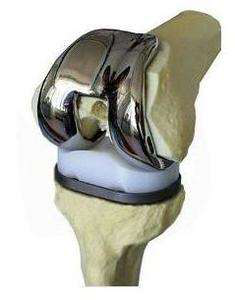

Zirconia Teeth	TitaniumAlloyJoint	Die and Mould Polishing	Metallography polishing
